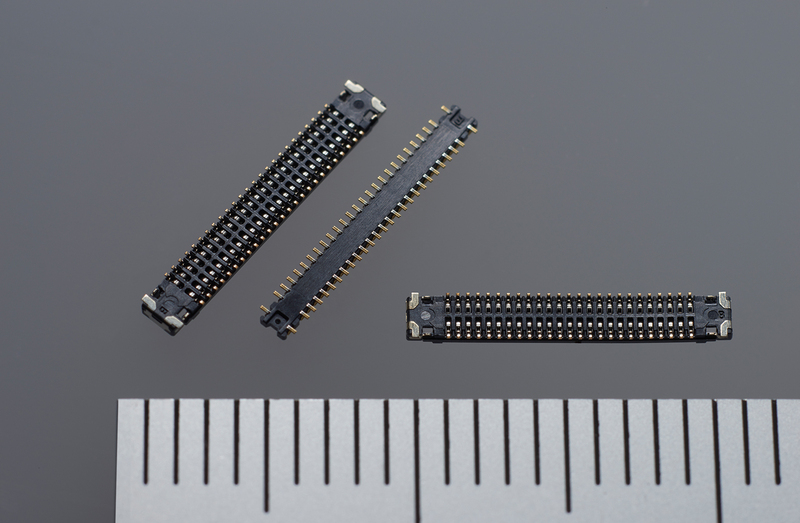

Narrow-pitch connectors

Polyplastics Co., Ltd., a leading global supplier of engineering thermoplastics, has announced the launch of a new series of low-dielectric liquid crystal polymers (LCPs) for next-generation communication devices. LAPEROS (R) E420P is the first in a series of low-dielectric grades which also possess inherent high heat resistance, mechanical properties, chemical resistance, high flow, and low warpage for films and connectors in cabling, antennas and circuit boards.

Polyplastics developed the new LCP series amidst increasing demand for low-dielectric and low-dielectric-tangent materials to satisfy the needs of 5G telecommunications and V2X telecommunications for autonomous automobiles and materials applicable for high-speed and high-frequency transmission components.

LAPEROS (R) E420P makes use of an optimum combination of filler and formulation technology to achieve a low-dielectric constant of less than 3.0 measured perpendicular to the flow direction for the 1-20 GHz frequency band. Further, the dielectric loss tangent is stable over the entire frequency band. The material also fulfills downsizing requirements and increasingly complex designs in connector applications and can be used in surface-mount technology (SMT) processes.

Polyplastics will expand its series of low-dielectric LCPs to meet broader performance requirements for connectors. The company plans to extend its product portfolio to include grades with enhanced low warpage, higher heat resistance and greater flow for compact, fine-pitched connectors. Since connectors are the primary target application, these grades are formulated with good flowability. Polyplastics reports that in tests using the company’s connector molds, the new grades are molded at lower packing pressure than conventional grades.

For more information, visit
https://www.polyplastics.com/en/product/lines/lcp_e420p/index.vm
